Manifolds & Piping
Because your operations require non-stop performance, Forum designs and manufactures premier high-pressure drilling equipment such as manifolds, mud-gas separators and choke control panels. We maintain full stocks around the world that are ready for quick delivery, and we also specialize in turnkey packages — from concept and surveys to installation and commissioning. Standard or custom, all of our solutions are fully supported by our global aftercare services team at strategic regional establishments.
All of our manifolds are designed, fabricated and tested to both satisfy unique customer needs and to meet or exceed rigorous, internationally recognized standards. When you select a Forum product, you are receiving a pressure control system that meets the highest safety and quality standards in the oil and gas industry.
Choke and Kill Manifolds
Deployed to help control downhole pressure fluctuations, choke and kill manifolds are especially important in cases of well kicks or blowouts. Rugged valve systems within these units ensure superior pressure control.
Mud Standpipe Manifolds
Keeping drilling fluids and muds flowing smoothly toward drillstrings is an essential function of Forum’s mud standpipe manifolds. Each component is manufactured and tested for reliable performance in unforgiving downhole environments.
Cement Manifolds
Designed for heavy slurry, Forum’s cement manifolds are currently in use on rigs and drillships around the world. Performing at pressures up to 15,000 pounds per square inch, we can design and install systems customized to your project needs.
Mud-Gas Separators
Simple in design but powerful in performance, Forum’s mud-gas separators remove large pockets of gas from drilling mud systems. With a broad range of sizes and capacities to fit your production needs, our equipment is backed worldwide by our experienced technical team.
Choke Control Panels
Built to thrive in high-pressure, high-temperature conditions, our choke control panels save time and reduce the safety issues associated with manual operation. Available with custom designs and builds that include local/remote and analog/digital displays.
Choke and Kill Manifolds
Forum’s choke and kill manifolds are manufactured to help control downhole pressure fluctuations, especially in cases of well kicks or blowouts. Designed to perform at levels up to 15,000 pounds per square inch (psi), the rugged valve systems within the manifolds help ensure superior pressure control. We can engineer and install complete choke and kill manifold packages tailored to your specific project requirements. All of our products meet the highest specifications in the oilfield industry, including American Petroleum Institute (API) and American Bureau of Shipping (ABS).
Features
- Multiple sizes of flanged systems
- Working pressures of 5,000/10,000/15,000 psi
- Forum XL API 6A gate valves
- Modular, skid-mounted and pre-commissioned
- API standards 6A, 53, 16C
- Third-party certifications: ABS CDS, DNV-GL-OS-E101
Applications
- Land
- Jack-up
- Semi
- Drillship

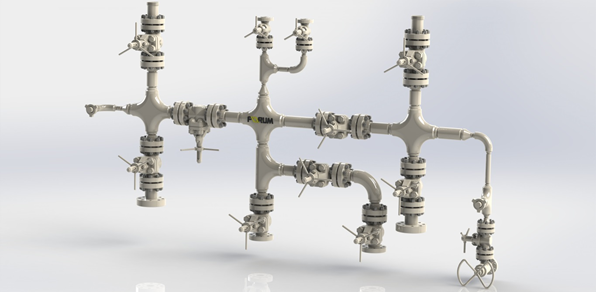

Mud Standpipe Manifolds
Keeping drilling fluids and muds flowing smoothly toward the drill line or drillstring is essential, especially in high-pressure, hostile production environments. Each component of Forum’s mud standpipe manifolds is tested for rugged durability to survive the unforgiving nature of downhole drilling. With standard and customized solutions available, including standpipe manifold fittings, our products are manufactured to meet the highest specifications in the oilfield industry.
Features
- Two- to five-inch inner diameter systems
- Butt-welded, hammer-lug or flanged designs
- Working pressures of 5,000/7,500 psi
- Forum Baker SPD mud gate valves
- Modular, skid-mounted and pre-commissioned
- Third-party certifications: American Bureau of Shipping CDS, DNV-GL-OS-E101*
*Det Norske Veritas Germanischer Lloyd
Applications
- Land
- Jack-up
- Semi
- Drillship

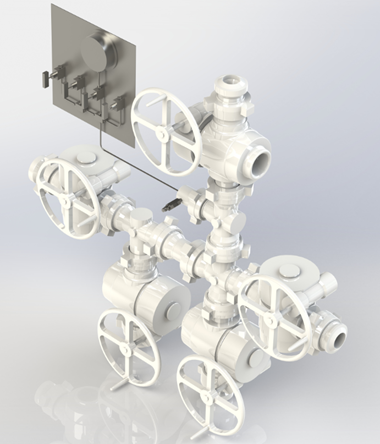

Cement Manifolds
Designed for heavy slurry, Forum’s cement manifolds are currently in use on rigs and drillships around the world. Manufactured to perform at pressures up to 15,000 pounds per square inch (psi), we can design and install complete cement manifold packages to your specifications at any location. All of Forum’s products are engineered to the highest specifications in the oilfield industry, such as American Petroleum Institute (API) and American Bureau of Shipping (ABS).
Features
- Two- and three-inch systems
- Hammer-lug or flanged designs
- Working pressures of 10,000/15,000 psi
- Forum Phoinix API 6A plug valves
- Modular, skid-mounted and pre-commissioned
- Third-party certifications: ABS CDS, DNV-GL-OS-E101
Applications
- Land
- Jack-up
- Semi
- Drillship

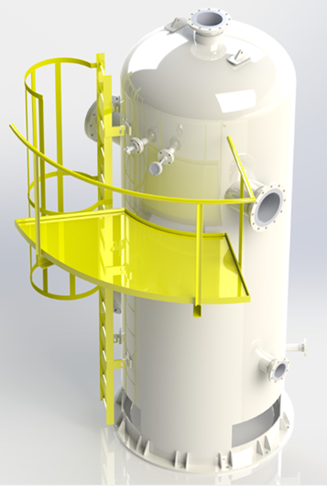

Mud-Gas Separators
As the first units of solids control systems, mud-gas separators allow you to retain critical pressure control within your wells. Simple in design but powerful in performance, these units capitalize on the density difference between gasses and solids to separate large pockets of gas from drilling mud systems. In the event of a gas kick, mud-separators provide especially critical venting that sends gas over baffle plates before ejecting it out of the line as a flare.
Because mud system needs are so diverse, Forum offers some of the oil and gas industry’s most flexible mud-gas separator solutions. With a broad range of sizes and capacities to fit your production needs, our equipment is backed worldwide by Forum’s experienced technical team. All of our products are manufactured to meet the highest specifications in the oilfield industry, including the American Society of Mechanical Engineers (ASME), the American Bureau of Shipping (ABS) and the British Standards Institution (PD series).
Features
- Multiple sizes and configurations
- Separation capacity calculation
- Optional liquid seal or dip tube
- Customized access platforms and ladders
- Pressure and temperature monitoring instrumentation
- ASME VIII or PD 5500 specifications
- Third-party certifications: ABS CDS, DNV-GL-OS-E101*
* Det Norske Veritas Germanischer Lloyd
Applications
- Land
- Jack-up
- Semi
- Drillship

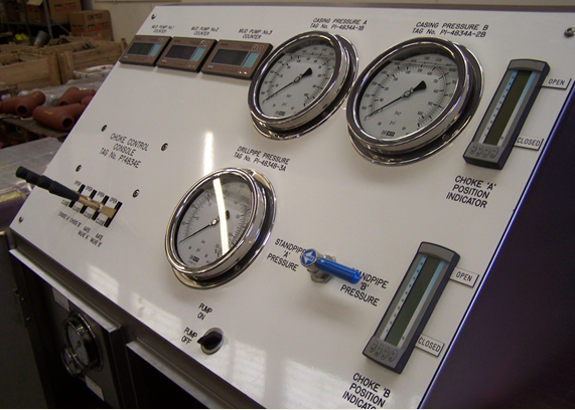

Choke Control Consoles
Forum’s customizable choke control panels allow you to locally or remotely monitor choke manifold factors – such as standpipe pressure, valve conditions and other real-time drilling parameters – to help control kicks and blowouts. Built to thrive in high-pressure, high-temperature conditions, these customizable units save time and reduce the safety issues associated with manual operation. All of Forum’s choke control panels are manufactured to the highest oilfield specifications, including the American Petroleum Institute (API) and American Bureau of Shipping (ABS).
Features
- Custom designs and builds
- Local and remote, analog and digital displays
- High-pressure, high-temperature monitoring
- API 16C
- Third-party certifications: ABS CDS, DNV-GL-OS-E101*
* Det Norske Veritas Germanischer Lloyd
Applications
- Land
- Jack-up
- Semi
- Drillship
