Forum FracKing Connect™
Streamlined Simplicity for Wellsites

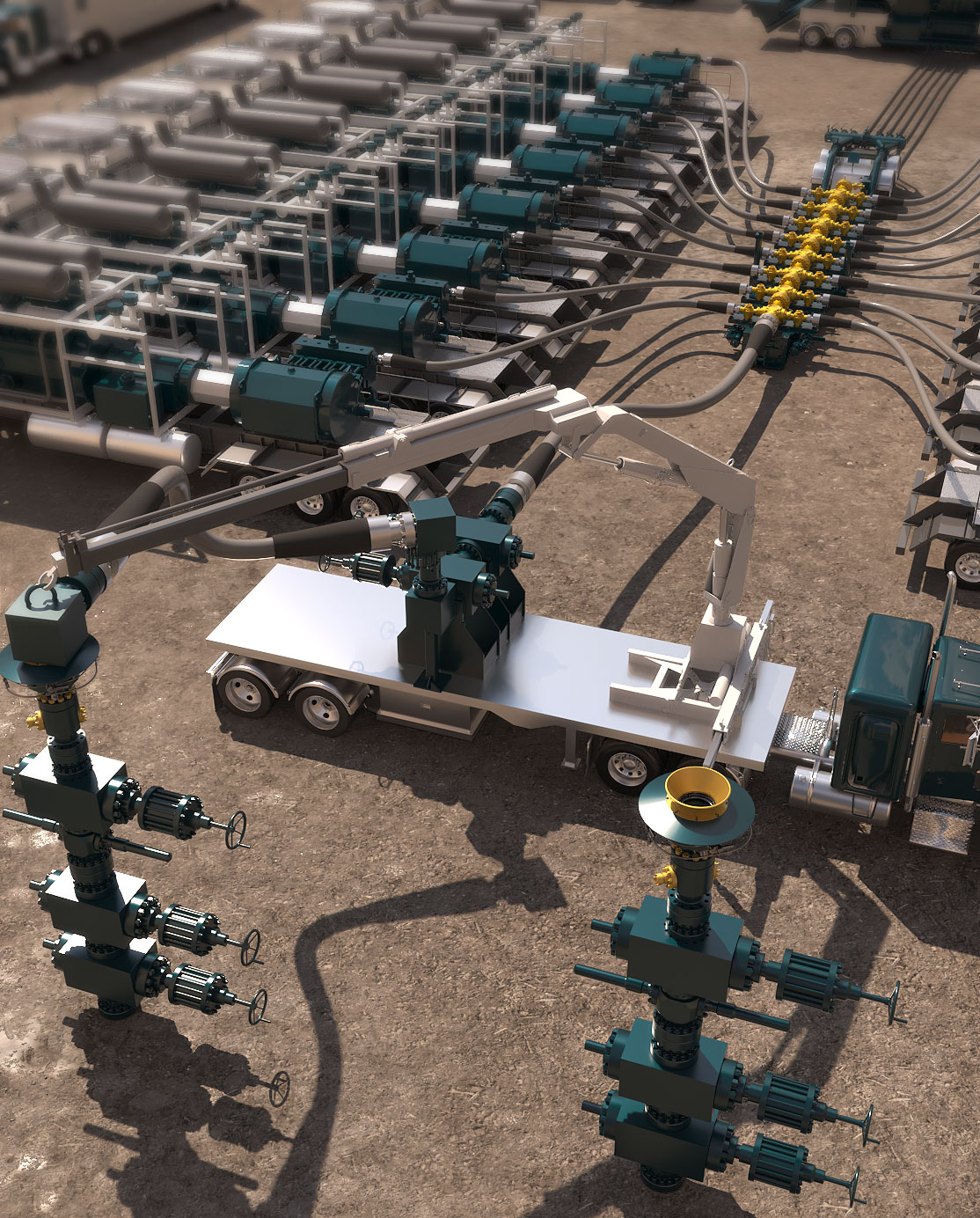

The Forum FracKing Connect™ offers the industry’s most integrated solution to streamline frac wellsite operations. It combines the benefits of powerful flexible hoses and large-bore fluid conduits to reduce iron fleets and remove literally hundreds of connections, assemblies and seals per site. Streamlining protects crews form equipment accidents while also providing a clear exit path during emergencies.
Utilizing our Serpent Series™ flexible hoses, the Forum FracKing Connect™ system includes a customized crane and Forum’s Hydraulic Latch Assembly (HLA) remote technology. This powerful combination makes operations such as switching between wellsites highly efficient and virtually free of associated downtime. Remote operations also remove crews from “red zones” and reduce downtime associated with crew interventions. Forum’s proprietary ICBM manifold trailer/skid is also included, outperforming while remaining safe and easy to operate.
| Design Features | Benefits |
|---|---|
| Single high pressure line for multi well pads | Elimination of zipper frac and permanent connection to each wellhead |
| Double pressure isolation of system | Removal of zipper frac manifold redundant required valves |
| Standard API Flange end connections | Easy removal and replacement of primary components |
| Single large bore flexible hoses | Reduction of required swivel connections up to 94%, simplistic design and significant reduction of complexity vs. competitor wellhead jumper systems. Increased reliability vs. swivel connections |
| Hydraulic latch wellhead and manifold connections | Quick connection during rig up from manifold to wellhead remotely controlled by operator, no manpower needed for manual connections |
| Dual purpose wellhead hydraulic latch system | Designed for fracking and wireline operations, removal of previous additional goat heads or cross blocks for permanent rig in on tree |
| 15K psi Max Working Pressure / 22.5K psi Test Pressure | Meets industry standard requirements |
| Up to 130 bpm flow rate | Meets high flow rate requirements during stimulation operations |
| Integrated crane system | Complete independent operation on well site |
