Power Ends

J3300

3,300 BHP Quintuplex Frac Pump

With over 3,500,000 accumulated pumping hours, Forum’s J-Series provides operators with the industry’s most reliable power ends. Offering an unparalleled two-year frame warranty, customers rely on Forum’s J-Series power end to deliver consistent and proven performance in the field. From the frame to the components, every J-series power end is built to handle the industry’s toughest challenges.

  • Rod Load : 255,000 lb.
  • Stroke : 8″
  • Maximum Input : 3,300 BHP
  • Maximum RPM (Input / Output): 1950 / 307
  • Power End Weight : 13,512 lb.
  • Complete Pump Weight : 18,812 lb.
  • Gear Ratio : 6.353:1
  • Center: 12″

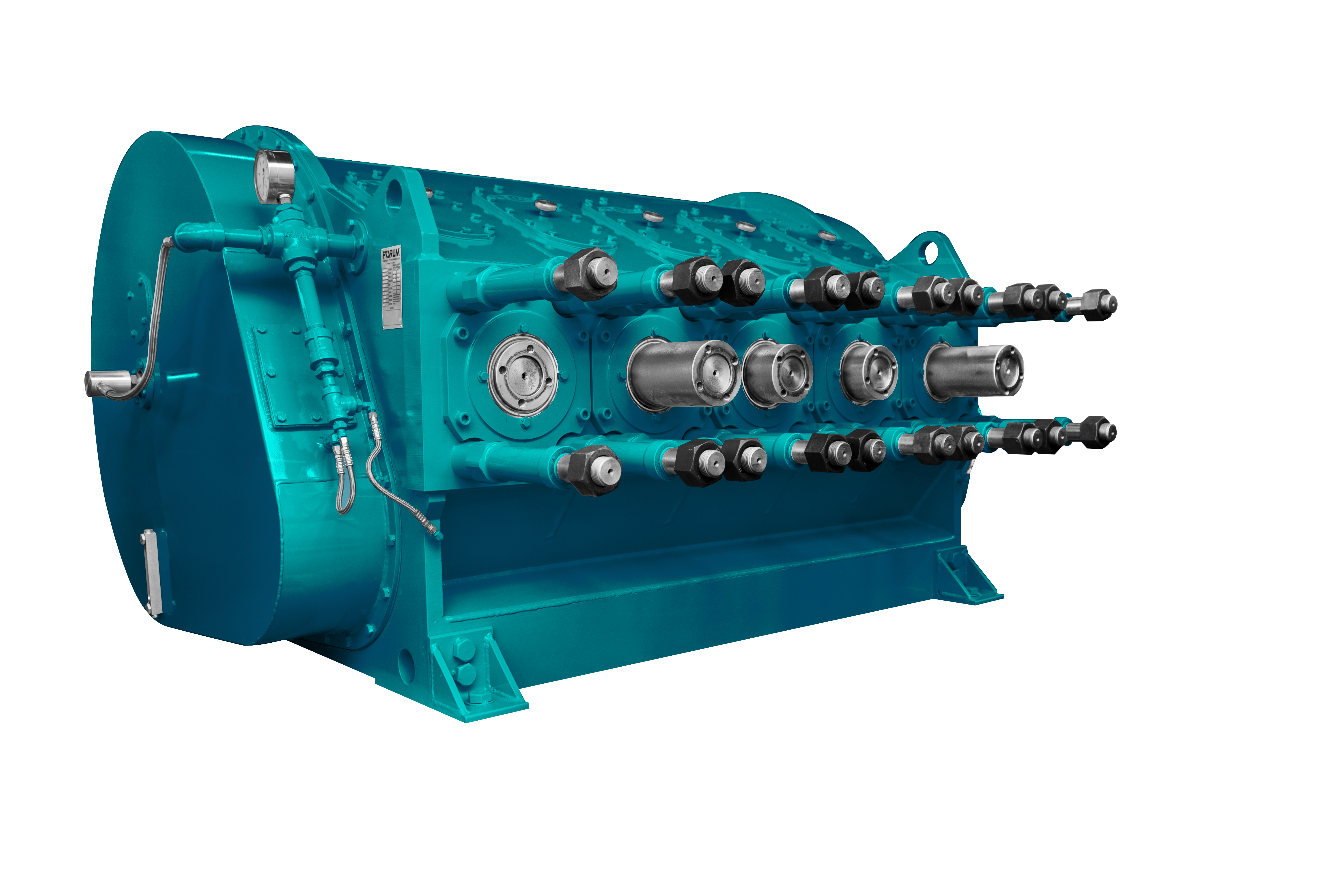

J3000

3,000 BHP Quintuplex Frac Pump

The J3000 is a field-proven, 3,0000 BHP frac pump that will deliver optimal performance while providing superior pump life. This proven design is only slightly larger than a standard 2500 horsepower pumps and does not require an additional gearbox.

The J3000 accepts 60″ valve-over-valve or y-block fluid end.

  • Rod Load : 240,000 lb.
  • Stroke : 8″
  • Maximum Input : 3,000 BHP
  • Maximum RPM (Input / Output): 1950 / 307
  • Power End Weight : 13,500 lb.
  • Complete Pump Weight : 18,800 lb.
  • Gear Ratio : 6.353:1
  • Center: 12″

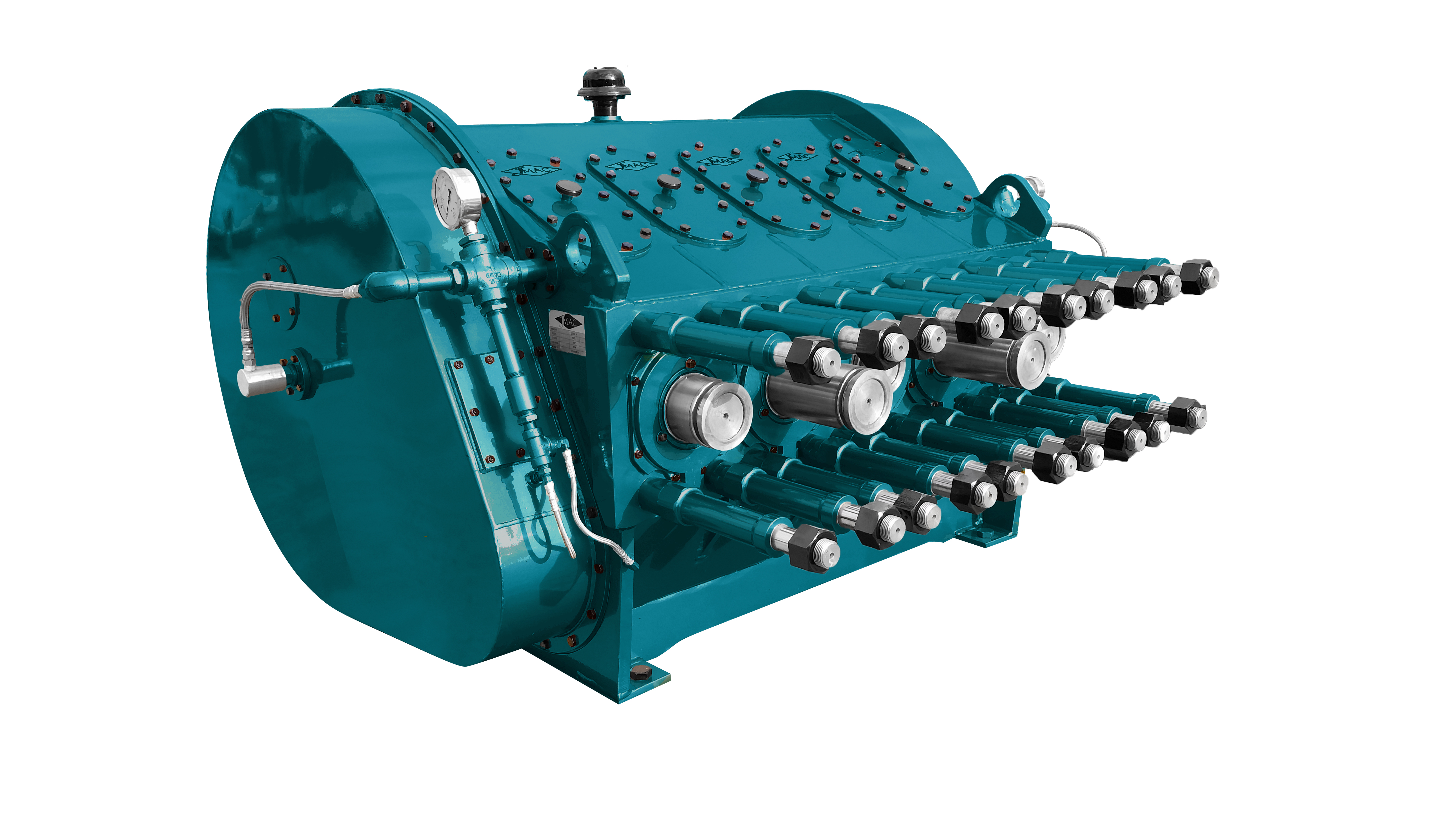

J2500

2,500 BHP Quintuplex Frac Pump

The J2500 is a field-proven frac pump delivers superior performance and pump life. It features a standard footprint and can be swung in place of many 2,500 BHP frac pump power ends.

The J2500 is compatible with most 52“ quintuplex fluid ends.

  • Rod Load : 235,000 lb.
  • Stroke Length : 8″
  • Maximum Input : 2,500 BHP
  • Maximum RPM (Input / Output): 1950 / 307
  • Power End Weight : 12,600 lb.
  • Complete Pump Weight : 17,200 lb.
  • Gear Ratio : 6.353:1
  • Center : 10″

J2250

2,250 BHP Triplex Frac Pump

The J2250 is a field-proven frac pump delivers superior performance and pump life. It features a standard footprint and can be swung in place of most 2,250 BHP frac pump power ends.

The J2250 is compatible with most standard triplex fluid ends.

  • Rod Load : 250,000 lb.
  • Stroke Length : 8″
  • Maximum Input : 2,250 BHP
  • Maximum RPM (Input / Output): 1950 / 307
  • Power End Weight : 9,500 lb.
  • Complete Pump Weight : 17,200 lb.
  • Gear Ratio : 6.353:1
  • Center: 12″
