Cranes

Forum’s CraneSafe product line produces safe, reliable and economical solutions to stand building for all rig types while enhancing productivity and safety.

Multi Purpose Crane

Multi Purpose Crane

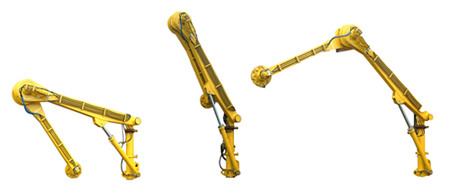

The CraneSafe™ Multi Purpose Crane (MPC) is a highly versatile and valuable addition to any rig. Hydraulically actuated, the MPC’s multi-axis control provides access to hard-to-reach places — eliminating the need for a manual interface.

The MPC’s compact design enables it to handle a wide variety of applications, including:

Under Rig Floor

  • Master Skid Crane
  • BOP Maintenance
  • Wire line activities

Above Rig Floor

  • V-door hoist
  • Drill floor manipulator arm

When fitted with the optional personnel basket, routine maintenance can be performed without the use of a riding belt — providing increased safety and superior flexibility.

An independent winch located at the end of the arm provides additional capabilities.

Technical Specifications
  • Safe working load: 7,500 lbs (3,400 kg) capacity at hook
    13,000 lbs (6,800 kg) from boom pad eye
  • Maximum radius: 21.6 ft (7.2 m)
  • Winch travel: 25.5 ft (8.5 m)
  • Boom rotation: 330 degrees min
  • Slew travel: 270 degrees min
  • Vertical hook travel: 28 ft (8.5 m)
  • Hoisting speed: 0.8 ft/s with load (0.25 m/s)
  • Lowering speed: 1.0 ft/s without load (0.30 m/s)
  • Electrical supply: None
  • Hydraulic supply: 2,800 psi (200 bar) at 24 GPM (90 LPM) maximum
  • Certification: ABS Available
Download Datasheet

Offline Activity Crane

Offline Activity Crane

Safe, reliable, economical solution to offline stand building for all rig types

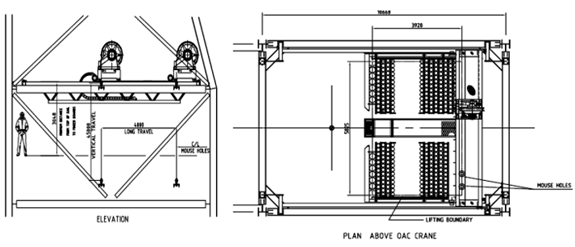

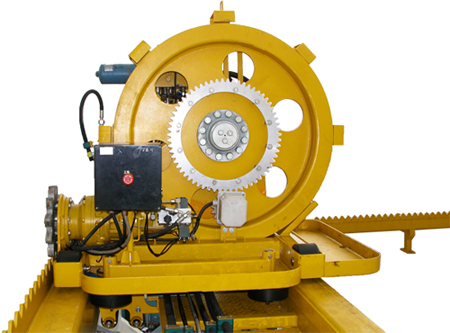

The CraneSafe™ Offline Activity Crane (OAC) is a compact, fit-for-purpose derrick- or mast-mounted tool that combines X-Y travel through a trolley system and hoisting functions into a single, easily installed and managed unit.

  • Hydraulically controlled
  • Seamless make-up and break-out process reduces non-productive time
  • Capable of handling stands of drill pipe, tubing and casing ranging from 2-7/8 inches to 13-5/8 inches
  • Operates independently of drawworks and rotary activities
  • Capable of tripping more than 5 million feet of tubular in a single unit without significant down-time
  • Available only from Forum

The OAC’s simple design and self-lubricating components enable easy maintenance and lower the total cost of ownership.

Technical Specifications
  • Safe working load: 5,000 lbs (2,250 kg) or 22,000 lbs (9,979 kg) capacity
  • Cross and long travel side pull: 1,000 lbs (453 kg)
  • Cross travel speed: 1.64 ft/s (0.5 m/s)
  • Long travel speed: 1.64 ft/s (0.5 m/s)
  • Vertical hook travel: 137 ft (42 m)
  • Hoisting speed: 3.25 ft/s (1 m/s)
  • Lowering speed: 6.50 ft/s (2 m/s)
  • Electrical supply: 110-120 Volts AC, 50-60 Hz and 500 Watts
  • Hydraulic supply: 3,000 psi (210 bar) at 47 GPM (180 LPM) maximum
  • Certification: ABS Available
Download Datasheet
