ARV - Automated Relief Valves

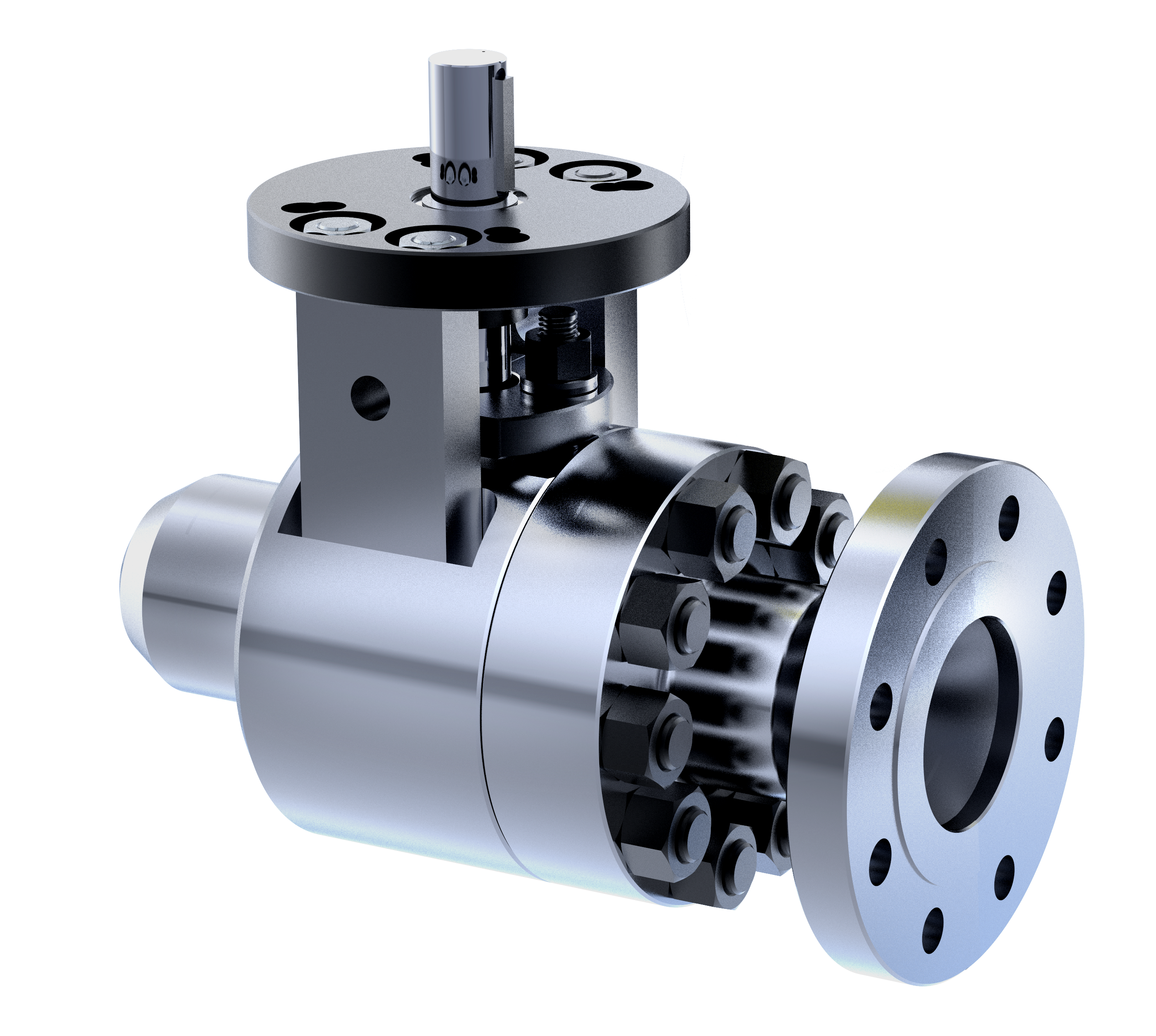

When performance under pressure is critical, Forum’s Accuseal® Automated Relief Valve is a must.

The Accuseal ARV design provides automatic or manual overpressure protection for steam boiler systems, assisting with venting for start-up and shutdown.

Applications
  • Automatic or manual overpressure protection
  • Start-up and shut-down venting assist
Size Range
  • Inlet size: 1½”- 4”
  • Bore size: ⅞”, 1”, 13/4”, 2”, 2½”, 3”
  • Outlet size: 3” – 6”
Pressure Class
  • 600 – 4500 in Standard,
  • Special & Limited Class
Connections
  • Butt Weld
  • Raised Face Flange, Ring Joint Flange
  • Tongue & Groove
Features and Benefits
  • Provides automatic or manual overpressure protection for steam boiler systems, assisting with venting for start-up and shutdown.
Accuseal manufactures valves to the following certifications
  • ISO 9001: 2008
  • PED/CE
  • CRN
  • IBR
  • SIL-3
