Electric Submersible Pump (ESP) Artificial Lift System

The Electric Submersible Pump (ESP) system is a widely used artificial lift method that employs an electric motor to drive a multistage centrifugal pump, efficiently lifting fluids from oil wells.

Subsurface Components — The downhole assembly includes:

A sensor for monitoring well conditions
An electric motor
A seal chamber
A shaft
A pump intake
Multiple centrifugal pump stages

Surface Components — At the surface, the system is supported by:

Electrical power supply equipment
An ESP controller
A variable speed drive for performance optimization

Advantages — ESPs offer several benefits:

Suitable for deviated and horizontal wells
Quiet operation with a compact footprint
Capable of handling high fluid volumes
Effective in corrosive environments

Challenges — Despite their advantages, ESPs come with some limitations:

Susceptible to damage from solids in the fluid
High costs associated with retrieval and repair in case of downhole failure
Reduced efficiency at lower production volumes
Larger casing sizes are required for high-rate production

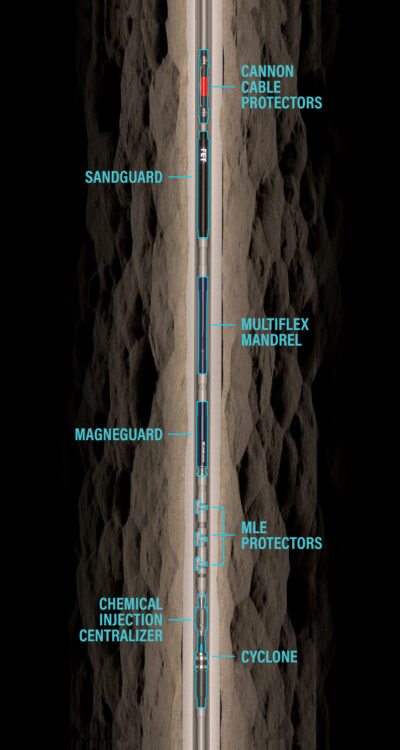

FET’s Multilift Solutions provides a range of advanced technologies designed to overcome these challenges and enhance the reliability and longevity of your ESP system.
