Valves

Forum Energy Technologies manufactures valves for pressure control equipment for well intervention. Below are the different valves offered.

Lo Torque Hydraulic

Features
  • Provides positive shutoff point in drill string by incorporating a hydraulic actuated stainless steel ball type valve that seals in both directions.
  • Valve in “full open” position”, (verifiable by external position indicator) provides a clear, unobstructed full bore to ensure no interference with tool string.
  • “Low-Torque” refers to ease of operation. By design, this valve requires only 1/4 turn to go from full open to full close position.This is achieved with the use of an offset wrench (included) operated by hand. (Hydraulic operation also available)
  • Multiple connection styles available.
  • Standard length allows for several connection “re-cuts” dependent on connection type, and severity of damage.
  • Up to 15,000 psi. working pressure
  • Up to 22,500 psi. test pressure
  • H2S service compatible (upon request

Note: Pressure and service, dependent on union requested.

Lo Torque Manual Valve

lo-torque-manual-valve
Features
  • Provides positive shutoff point in drill string by incorporating a stainless steel ball type valve that seals in both directions.
  • Valve in “full open” position”, (verifiable by external position indicator) provides a clear, unobstructed full bore to ensure no interference with tool string.
  • “Low-Torque” refers to eas of operation. By design, this valve requires only 1/4 turn to go from full open to full close position.This is achieved with the use of an offset wrench (included) operated by hand. (Hydraulic operation also available)
  • Multiple connection styles available.
  • Standard length allows for several connection “re-cuts” dependent on connection type, and severity of damage.
  • Up to 15,000 psi. working pressure
  • Up to 22,500 psi. test pressure
  • H2S service compatible (upon request)

Note: Pressure and service, dependent on union requested.

Wireline Valve (BOP) Replacement Parts

Replacement Rams

Several different styles available:

  • Type-B compatible design
  • Type-H compatible design
  • Type-T compatible design
  • AMT style design

Several different styles available

  • 7/32”
  • 3/16”
  • 5/16”
  • 7/16”
  • 15/32”
  • 17/32”
  • and “multi-line”

Produced from 17-4 DH-1150 Stainless Steel, full material traceability paperwork provided upon delivery.

Replacement Inner and Outer Ram seals
  • Same manufacturer compatibility as listed above.
  • Same available line sizes as listed above.
  • Produced through a process known as “Compression Molding” from durable, “Highly Saturated Nitrile” also known as (HSN).

Other composite materials available per customer request.

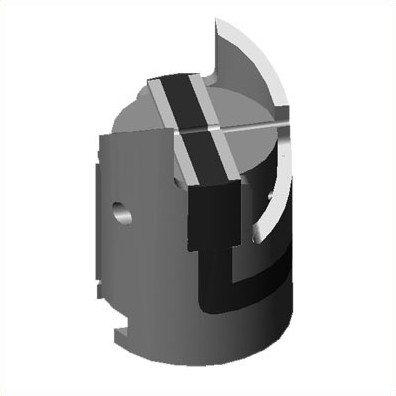

Type B Compatible Rams & Seals

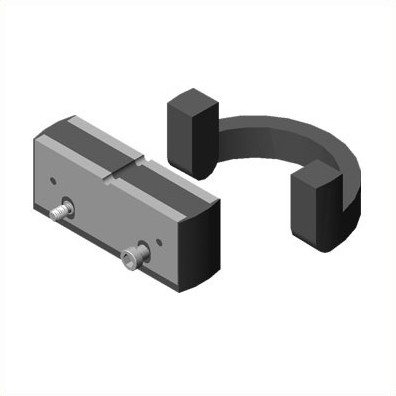

Type H Compatible Rams & Seals

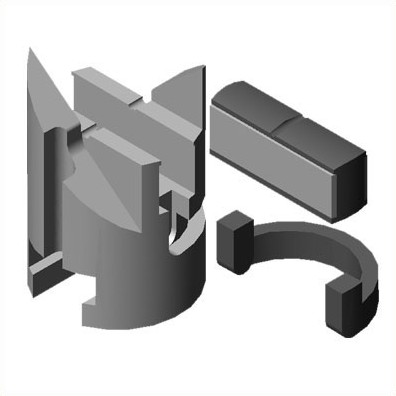

AMT Compatible Rams & Seals
