DyPak / Swabline

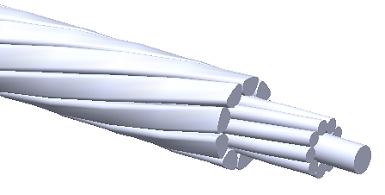

FET’s Quality Wireline re-engineered the conventional compacted swabline to eliminate the current problems associated with these cables. The result is the DyPak line, which eliminates metal shavings and significantly improves torque, ovality, and diameter control.
The material in the specification sheets below is galvanized-improved plow steel (GIPS). Other materials, such as stainless 316, S75, and S77, are available.
DyPak Brochures

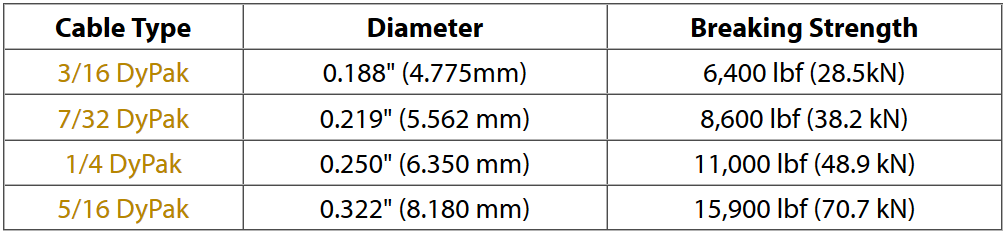

DyPak Options
| Cable Type | Diameter | Breaking Strength |
| 3/16" DyPak | 0.188" (4.775mm) | 6,400 lbf (28.5kN) |
| 7/32" DyPak | 0.219" (5.562mm) | 8,600 lbf (38.2kN) |
| 1/4" DyPak | 0.250" (6.350mm) | 11,000 lbf (48.9kN) |
