Coiled Tubing Pressure Control

General Specifications

• Service: H2S
• Standard Operating Temperatures: -29°C to 121°C (-20°F to 250°F)
• Low Operating Temperatures: -45°C to 82°C (-50°F to 180°F)
• Various Flanged Connections and Quick Union options available

FET VAN offers a wide selection of pressure control accessories and equipment including lubricators, adapters, bleed subs, flow tees/crosses, and injection subs. All equipment matches the working pressure, service rating, and end connections consistent with surface pressure control equipment.

Features

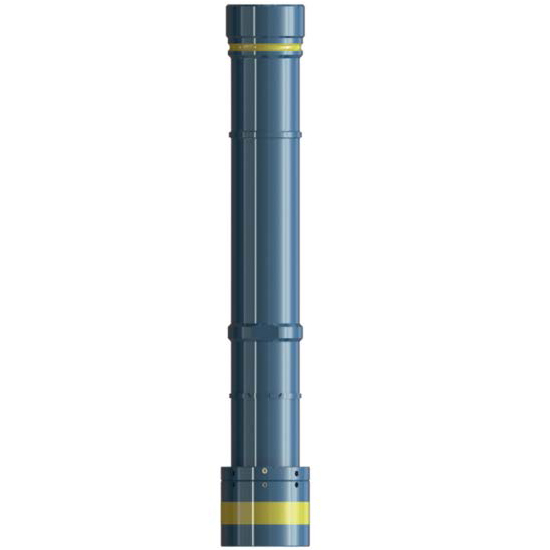

• Lubricators/Risers (Integral or Threaded)
• Adapters/Bleed Subs
• Flow Tees/Crosses
• Chemical Injection Sub

FET VAN designs its Chemical Injection Sub to inject coolant or inhibitor fluids onto the coiled tubing while running into or out of the well. The internal brass sleeve has tiny pin holes that even coat the fluid on the tubing. FET’s 4 1/16″ coolant/inhibitor injection sub comes with two 2″ 1502 Weco port connections for connection with an injection line. A check valve design is incorporated in the Weco ports to prevent wellbore pressure from escaping into the injection line.

Chemical injection subs are available for 5000 PSI to 15000 PSI working pressures for standard or sour service environments.

Features

• It comes with a brass insert that can be replaced if worn
• Available with Flanged, Otis, or Bowen hand union connections
• Available with internal diameters of 3 1/16”, 4 1/16”, 5 1/8”, or 7 1/16”
